Thông tin chi tiết sản phẩm:
|
| Vật liệu: | Thép Q235 | Đường kính: | 22/20/25 triệu |
|---|---|---|---|
| Chiều dài: | 1.905/2.180/2.198M hoặc tùy chỉnh | Xử lý bề mặt: | Mạ điện, màu bạc |
| ôi: | Có sẵn | Ứng dụng: | Xây dựng xây dựng |

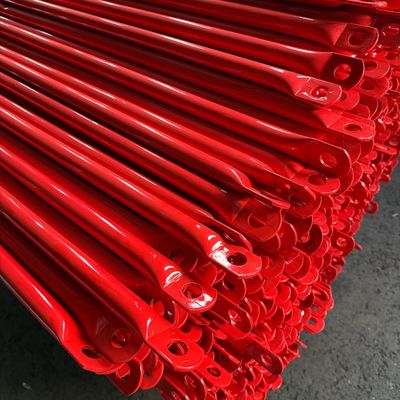

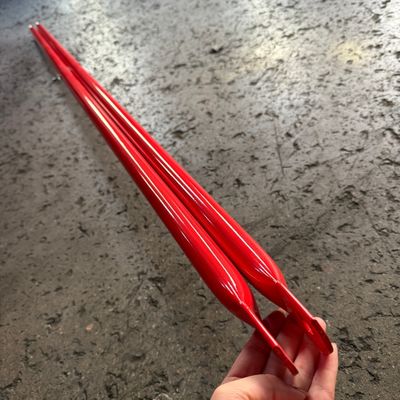

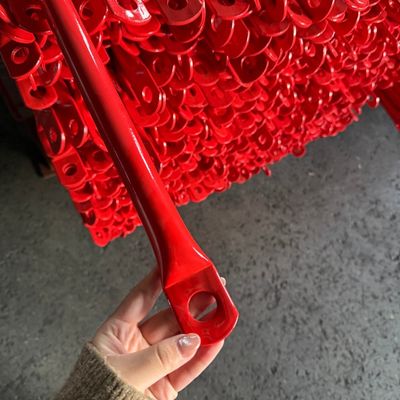

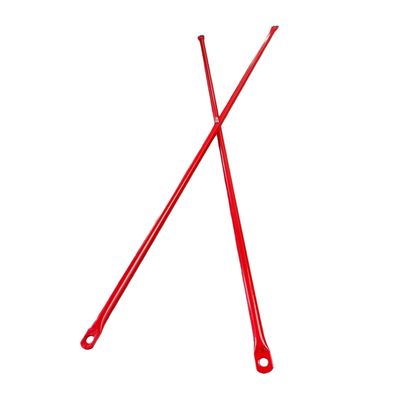

Frame Scaffolding Parts Scaffolding Cross Brace
◆Product Overview
Scaffolding cross brace are used to connect the scaffolding frame, made of pre-galvanized pipe. with good anti-rust capacity and different size , our cross brace suit for both developed market and undeveloped market.
◆Product Parameter
| Accessories type | Cross brace | Cross brace | Cross brace |
| Sample |  |
|
|
| Material | Q195 Steel | Q195 Steel | Q195 Steel |
| Surface treatment | Pre galvanized,silver color | ||
| Diameter | 20mm | 22mm | 25mm |
| Thickness | 1.0-1.3mm | 1.0mm | 1.0-1.2mm |
| Length | 1928/2045/2198mm or customized | ||
| Weight | 1.8-2.6kg | 2kg | 2.2-3kg |
◆Product Advantage
A.Stronger:
1.Our cross brace has knots on both size,and could have 3plate in the middle. This make the cross brace more stronger.
2.Our bottom part is gentle and not totally flat,it's stronger and not easy to broke.
B.Various Types:Customized thickness and length are available
◆We also manufacture
1. Formwork accessories: formwork tie rod,waller plate,anchor nut,wing nut,water stopper,hex nut,climbing cone nut,formwork clamp,rapid clamp etc.
2. Scaffolding accessories: Hollow/Solid adjustable base jack, U head, universal base jack,adjustable jack nut,thread rod.
3. Steel prop parts: Prop sleeve, prop plate, prop nut, prop pins.
4. Cuplock parts: Top cup, bottom cup, ledger blade.
5. Ringlok parts: Ringlock rosette, ledger end, brace endwedge pin.
6. Scaffolding Couplers : Pressed and drop forged swivel coupler, pressed or drop forged fixed coupler
7. Specail products : U clip , hook set, small base plate etc.
